Snap-Tite®
Snap-Tite® is a completely customizable hidden fastener roofing solution for your project. Available in 12″ or 16″ wide panels with a 1″ major rib and the minors in beads or striations, the possibilities are endless. Most commonly used in residential projects, Snap-Tite® can easily be incorporated into any agricultural or commercial project.
General Info

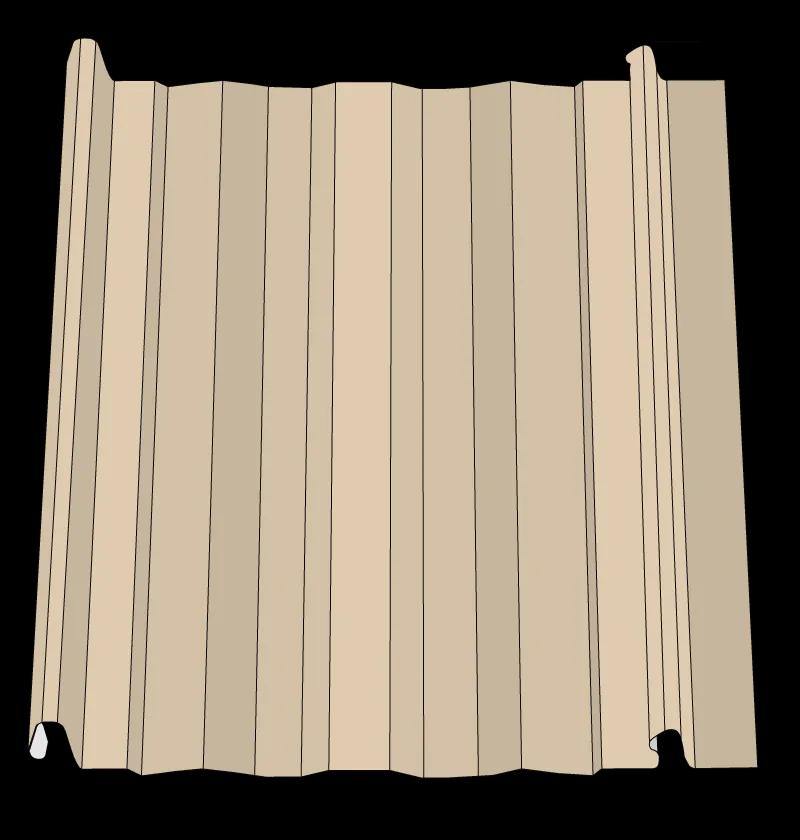

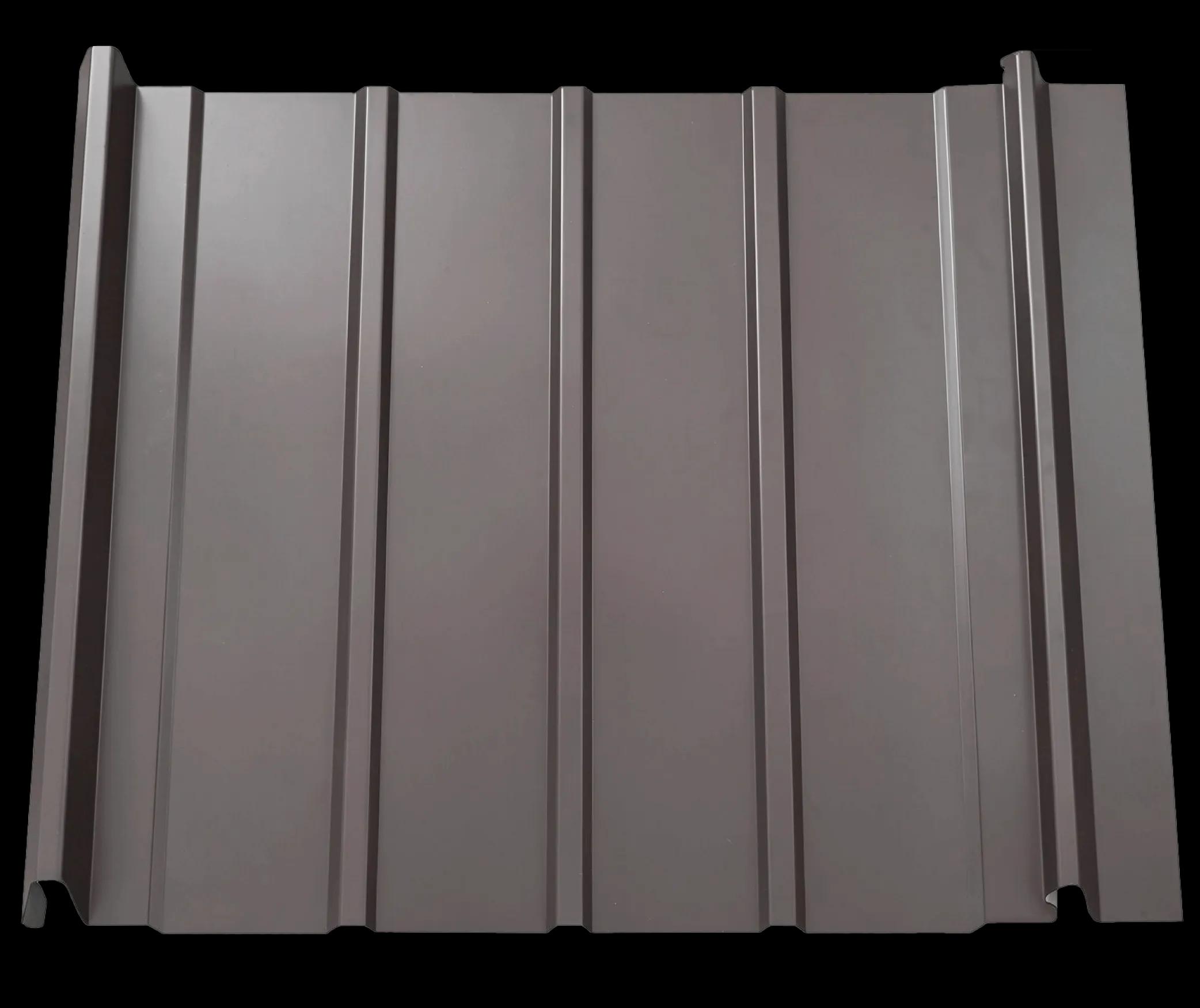

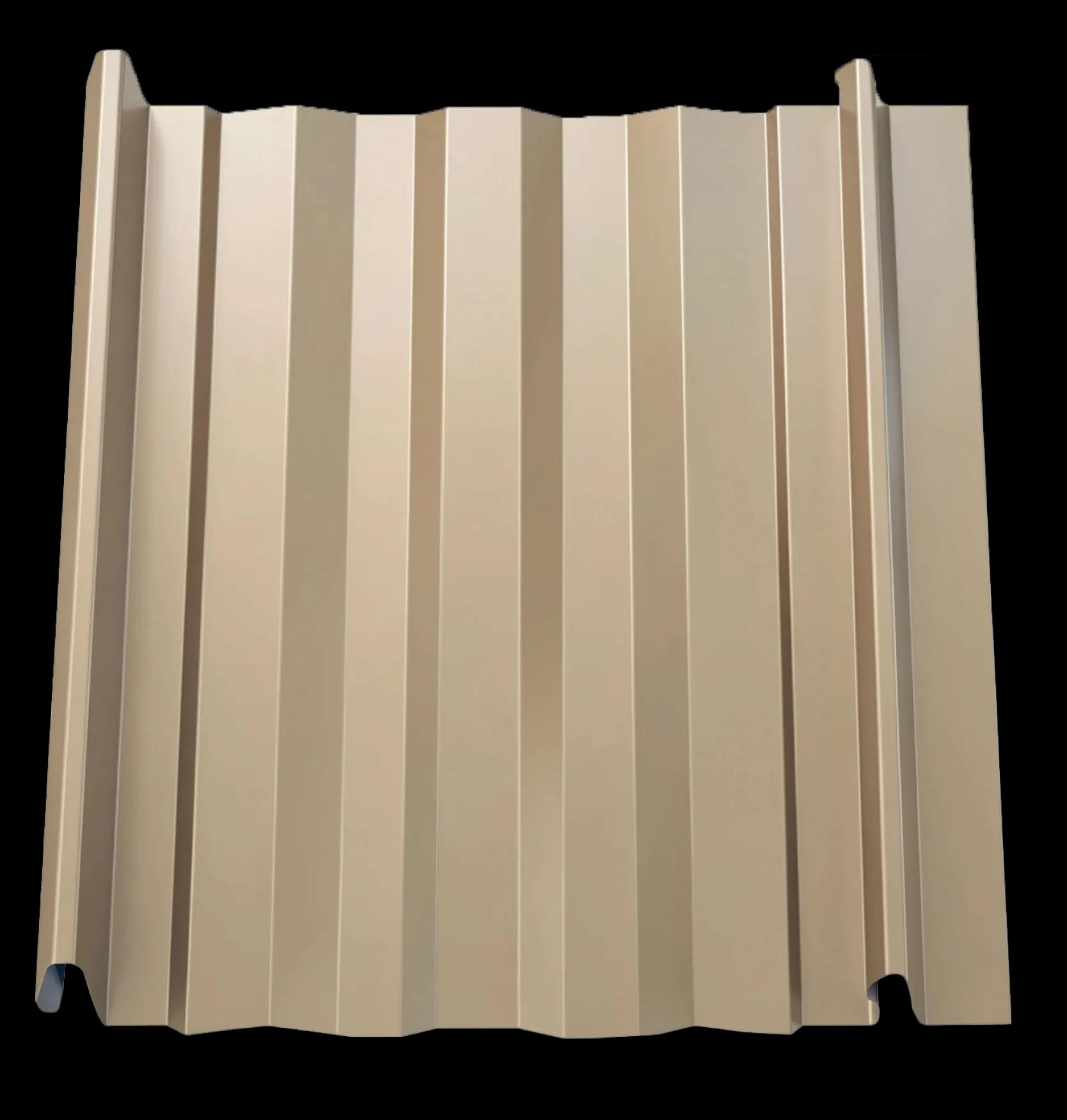

- Minors available in beads or striations
- Available in 28 (Hi-Tensile) & 26 gauge
- Call for 24 gauge availability
- Minimum roof slope 3:12
- 40 year paint warranty
Snap-Tite®
Roofing & Siding
12" Details
- 1" ribs on 12" centers
- 12" coverage
- Available in 28 gauge
16" Details
- 1" ribs on 16" centers
- 16" coverage
- Currently unavailable in 28 gauge
Roof Application
Notice: Prior to beginning your installation use a check list to make sure you have everything you will need to install your metal roof.
All SNAP-TITE® panels must be installed over a solid substrate.
Panel Installation should begin at the gable end of the roof opposite the prevailing rain bearing wind (this will help ensure that wind driven rain will not penetrate the lap).
For best results a synthetic underlayment over the solid roof deck should be used to repel any moisture from the roof deck and will eliminate any potential issues with condensation.
